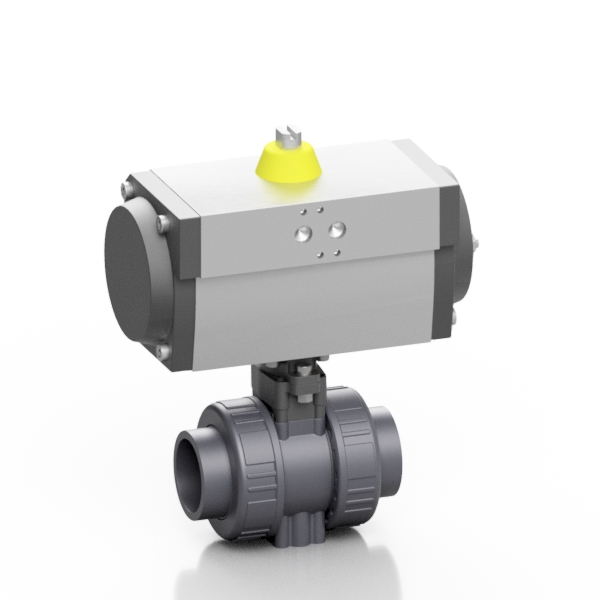

PVC-U pneumatic BK1 ball valve

Spring return and double acting

DESCRIPTION

BK1 ball valve, ideal for heavy duty applications, chemical applications and water treatment, can be actuated with standard pneumatic actuators using the dedicated kit. The mounting flange is drilled according to standard ISO 5211.

Technical features:

  • Solvent welded sockets (ISO, BS, ASTM, JIS), threaded sockets (BSP or NPT), HDPE sockets or flanged
  • Nominal pressure (PN): 16 bar – 232 psi
  • Valve body designed to be actuated
  • Floating full bore ball locked in place on both sides.
  • Fully round ball smoothed by special turning machines.
  • Machined stem seat.
  • PTFE ball seat.
  • EDPM or FKM O-rings.
  • Potable water approval.
  • Marine Application approval.
  • CE approval.
  • The valves are manufactured with a PVC-U fit for conctact with potable water in accordance with regulation force in Italy, France, Germany, Holland, U.K. and Scandinavian countries.
PRODUCT CODES: BDRPBK1016S BDRPBK1020S BDRPBK1025S BDRPBK1032S BDRPBK1040S BDRPBK1050S BDRPBK1063S BDRPBK1075S BDRPBK1090S BDRPBK1110S BDRPBK1016SV BDRPBK1020SV BDRPBK1025SV BDRPBK1032SV BDRPBK1040SV BDRPBK1050SV BDRPBK1063SV BDRPBK1075SV BDRPBK1090SV BDRPBK1110SV BDRPBK1016D BDRPBK1020D BDRPBK1025D BDRPBK1032D BDRPBK1040D BDRPBK1050D BDRPBK1063D BDRPBK1075D BDRPBK1090D BDRPBK1110D BDRPBK1016DV BDRPBK1020DV BDRPBK1025DV BDRPBK1032DV BDRPBK1040DV BDRPBK1050DV BDRPBK1063DV BDRPBK1075DV BDRPBK1090DV BDRPBK1110DV BERPBK1016S BERPBK1020S BERPBK1025S BERPBK1032S BERPBK1040S BERPBK1050S BERPBK1063S BERPBK1075S BERPBK1090S BERPBK1110S BERPBK1016SV BERPBK1020SV BERPBK1025SV BERPBK1032SV BERPBK1040SV BERPBK1050SV BERPBK1063SV BERPBK1075SV BERPBK1090SV BERPBK1110SV BERPBK1016D BERPBK1020D BERPBK1025D BERPBK1032D BERPBK1040D BERPBK1050D BERPBK1063D BERPBK1075D BERPBK1090D BERPBK1110D BERPBK1016DV BERPBK1020DV BERPBK1025DV BERPBK1032DV BERPBK1040DV BERPBK1050DV BERPBK1063DV BERPBK1075DV BERPBK1090DV BERPBK1110DV BARPBK1016S BARPBK1020S BARPBK1025S BARPBK1032S BARPBK1040S BARPBK1050S BARPBK1063S BARPBK1075S BARPBK1090S BARPBK1110S BARPBK1016SV BARPBK1020SV BARPBK1025SV BARPBK1032SV BARPBK1040SV BARPBK1050SV BARPBK1063SV BARPBK1075SV BARPBK1090SV BARPBK1110SV BARPBK1016D BARPBK1020D BARPBK1025D BARPBK1032D BARPBK1040D BARPBK1050D BARPBK1063D BARPBK1075D BARPBK1090D BARPBK1110D BARPBK1016DV BARPBK1020DV BARPBK1025DV BARPBK1032DV BARPBK1040DV BARPBK1050DV BARPBK1063DV BARPBK1075DV BARPBK1090DV BARPBK1110DV BDRPBK1F020S BDRPBK1F025S BDRPBK1F032S BDRPBK1F040S BDRPBK1F050S BDRPBK1F063S BDRPBK1F075S BDRPBK1F090S BDRPBK1F110S BDRPBK1F020SV BDRPBK1F025SV BDRPBK1F032SV BDRPBK1F040SV BDRPBK1F050SV BDRPBK1F063SV BDRPBK1F075SV BDRPBK1F090SV BDRPBK1F110SV BDRPBK1F020D BDRPBK1F025D BDRPBK1F032D BDRPBK1F040D BDRPBK1F050D BDRPBK1F063D BDRPBK1F075D BDRPBK1F090D BDRPBK1F110D BDRPBK1F020DV BDRPBK1F025DV BDRPBK1F032DV BDRPBK1F040DV BDRPBK1F050DV BDRPBK1F063DV BDRPBK1F075DV BDRPBK1F090DV BDRPBK1F110DV BDRPBK1P020S BDRPBK1P025S BDRPBK1P032S BDRPBK1P040S BDRPBK1P050S BDRPBK1P063S BDRPBK1P075S BDRPBK1P090S BDRPBK1P110S BDRPBK1P020SV BDRPBK1P025SV BDRPBK1P032SV BDRPBK1P040SV BDRPBK1P050SV BDRPBK1P063SV BDRPBK1P075SV BDRPBK1P090SV BDRPBK1P110SV BDRPBK1P020D BDRPBK1P025D BDRPBK1P032D BDRPBK1P040D BDRPBK1P050D BDRPBK1P063D BDRPBK1P075D BDRPBK1P090D BDRPBK1P110D BDRPBK1P020DV BDRPBK1P025DV BDRPBK1P032DV BDRPBK1P040DV BDRPBK1P050DV BDRPBK1P063DV BDRPBK1P075DV BDRPBK1P090DV BDRPBK1P110DV BDRPBK1D BDRPBK1P PBK1 PBK1P BARPBK1 BERPBK1 BNRPBK1 BSRPBK1 BJRPBK1
Applications:
PVC-U pneumatic BK1 ball valve - EFFAST - 100% Made in Italy

Documents

Datasheet PVC-U Double Union Ball Valves BK1
Dimensional PVC-U Pneumatic BK1 Ball Valve Spring Return, Solvent Welded Metric
Dimensional PVC-U Pneumatic BK1 Ball Valve Double Acting, Solvent Welded Metric
Dimensional PVC-U Pneumatic BK1 Ball Valve Spring Return, Solvent Welded BS
Dimensional PVC-U Pneumatic BK1 Ball Valve Double Acting, Solvent Welded BS
Dimensional PVC-U Pneumatic BK1 Ball Valve Spring Return, BSPP Threaded
Dimensional PVC-U Pneumatic BK1 Ball Valve Double Acting, BSPP Threaded

Instruction Manual Ball Valves

PRODUCT CODES: BDRPBK1016S BDRPBK1020S BDRPBK1025S BDRPBK1032S BDRPBK1040S BDRPBK1050S BDRPBK1063S BDRPBK1075S BDRPBK1090S BDRPBK1110S BDRPBK1016SV BDRPBK1020SV BDRPBK1025SV BDRPBK1032SV BDRPBK1040SV BDRPBK1050SV BDRPBK1063SV BDRPBK1075SV BDRPBK1090SV BDRPBK1110SV BDRPBK1016D BDRPBK1020D BDRPBK1025D BDRPBK1032D BDRPBK1040D BDRPBK1050D BDRPBK1063D BDRPBK1075D BDRPBK1090D BDRPBK1110D BDRPBK1016DV BDRPBK1020DV BDRPBK1025DV BDRPBK1032DV BDRPBK1040DV BDRPBK1050DV BDRPBK1063DV BDRPBK1075DV BDRPBK1090DV BDRPBK1110DV BERPBK1016S BERPBK1020S BERPBK1025S BERPBK1032S BERPBK1040S BERPBK1050S BERPBK1063S BERPBK1075S BERPBK1090S BERPBK1110S BERPBK1016SV BERPBK1020SV BERPBK1025SV BERPBK1032SV BERPBK1040SV BERPBK1050SV BERPBK1063SV BERPBK1075SV BERPBK1090SV BERPBK1110SV BERPBK1016D BERPBK1020D BERPBK1025D BERPBK1032D BERPBK1040D BERPBK1050D BERPBK1063D BERPBK1075D BERPBK1090D BERPBK1110D BERPBK1016DV BERPBK1020DV BERPBK1025DV BERPBK1032DV BERPBK1040DV BERPBK1050DV BERPBK1063DV BERPBK1075DV BERPBK1090DV BERPBK1110DV BARPBK1016S BARPBK1020S BARPBK1025S BARPBK1032S BARPBK1040S BARPBK1050S BARPBK1063S BARPBK1075S BARPBK1090S BARPBK1110S BARPBK1016SV BARPBK1020SV BARPBK1025SV BARPBK1032SV BARPBK1040SV BARPBK1050SV BARPBK1063SV BARPBK1075SV BARPBK1090SV BARPBK1110SV BARPBK1016D BARPBK1020D BARPBK1025D BARPBK1032D BARPBK1040D BARPBK1050D BARPBK1063D BARPBK1075D BARPBK1090D BARPBK1110D BARPBK1016DV BARPBK1020DV BARPBK1025DV BARPBK1032DV BARPBK1040DV BARPBK1050DV BARPBK1063DV BARPBK1075DV BARPBK1090DV BARPBK1110DV BDRPBK1F020S BDRPBK1F025S BDRPBK1F032S BDRPBK1F040S BDRPBK1F050S BDRPBK1F063S BDRPBK1F075S BDRPBK1F090S BDRPBK1F110S BDRPBK1F020SV BDRPBK1F025SV BDRPBK1F032SV BDRPBK1F040SV BDRPBK1F050SV BDRPBK1F063SV BDRPBK1F075SV BDRPBK1F090SV BDRPBK1F110SV BDRPBK1F020D BDRPBK1F025D BDRPBK1F032D BDRPBK1F040D BDRPBK1F050D BDRPBK1F063D BDRPBK1F075D BDRPBK1F090D BDRPBK1F110D BDRPBK1F020DV BDRPBK1F025DV BDRPBK1F032DV BDRPBK1F040DV BDRPBK1F050DV BDRPBK1F063DV BDRPBK1F075DV BDRPBK1F090DV BDRPBK1F110DV BDRPBK1P020S BDRPBK1P025S BDRPBK1P032S BDRPBK1P040S BDRPBK1P050S BDRPBK1P063S BDRPBK1P075S BDRPBK1P090S BDRPBK1P110S BDRPBK1P020SV BDRPBK1P025SV BDRPBK1P032SV BDRPBK1P040SV BDRPBK1P050SV BDRPBK1P063SV BDRPBK1P075SV BDRPBK1P090SV BDRPBK1P110SV BDRPBK1P020D BDRPBK1P025D BDRPBK1P032D BDRPBK1P040D BDRPBK1P050D BDRPBK1P063D BDRPBK1P075D BDRPBK1P090D BDRPBK1P110D BDRPBK1P020DV BDRPBK1P025DV BDRPBK1P032DV BDRPBK1P040DV BDRPBK1P050DV BDRPBK1P063DV BDRPBK1P075DV BDRPBK1P090DV BDRPBK1P110DV BDRPBK1D BDRPBK1P PBK1 PBK1P BARPBK1 BERPBK1 BNRPBK1 BSRPBK1 BJRPBK1
Applications:

3D model

PRODUCT CODES: BDRPBK1016S BDRPBK1020S BDRPBK1025S BDRPBK1032S BDRPBK1040S BDRPBK1050S BDRPBK1063S BDRPBK1075S BDRPBK1090S BDRPBK1110S BDRPBK1016SV BDRPBK1020SV BDRPBK1025SV BDRPBK1032SV BDRPBK1040SV BDRPBK1050SV BDRPBK1063SV BDRPBK1075SV BDRPBK1090SV BDRPBK1110SV BDRPBK1016D BDRPBK1020D BDRPBK1025D BDRPBK1032D BDRPBK1040D BDRPBK1050D BDRPBK1063D BDRPBK1075D BDRPBK1090D BDRPBK1110D BDRPBK1016DV BDRPBK1020DV BDRPBK1025DV BDRPBK1032DV BDRPBK1040DV BDRPBK1050DV BDRPBK1063DV BDRPBK1075DV BDRPBK1090DV BDRPBK1110DV BERPBK1016S BERPBK1020S BERPBK1025S BERPBK1032S BERPBK1040S BERPBK1050S BERPBK1063S BERPBK1075S BERPBK1090S BERPBK1110S BERPBK1016SV BERPBK1020SV BERPBK1025SV BERPBK1032SV BERPBK1040SV BERPBK1050SV BERPBK1063SV BERPBK1075SV BERPBK1090SV BERPBK1110SV BERPBK1016D BERPBK1020D BERPBK1025D BERPBK1032D BERPBK1040D BERPBK1050D BERPBK1063D BERPBK1075D BERPBK1090D BERPBK1110D BERPBK1016DV BERPBK1020DV BERPBK1025DV BERPBK1032DV BERPBK1040DV BERPBK1050DV BERPBK1063DV BERPBK1075DV BERPBK1090DV BERPBK1110DV BARPBK1016S BARPBK1020S BARPBK1025S BARPBK1032S BARPBK1040S BARPBK1050S BARPBK1063S BARPBK1075S BARPBK1090S BARPBK1110S BARPBK1016SV BARPBK1020SV BARPBK1025SV BARPBK1032SV BARPBK1040SV BARPBK1050SV BARPBK1063SV BARPBK1075SV BARPBK1090SV BARPBK1110SV BARPBK1016D BARPBK1020D BARPBK1025D BARPBK1032D BARPBK1040D BARPBK1050D BARPBK1063D BARPBK1075D BARPBK1090D BARPBK1110D BARPBK1016DV BARPBK1020DV BARPBK1025DV BARPBK1032DV BARPBK1040DV BARPBK1050DV BARPBK1063DV BARPBK1075DV BARPBK1090DV BARPBK1110DV BDRPBK1F020S BDRPBK1F025S BDRPBK1F032S BDRPBK1F040S BDRPBK1F050S BDRPBK1F063S BDRPBK1F075S BDRPBK1F090S BDRPBK1F110S BDRPBK1F020SV BDRPBK1F025SV BDRPBK1F032SV BDRPBK1F040SV BDRPBK1F050SV BDRPBK1F063SV BDRPBK1F075SV BDRPBK1F090SV BDRPBK1F110SV BDRPBK1F020D BDRPBK1F025D BDRPBK1F032D BDRPBK1F040D BDRPBK1F050D BDRPBK1F063D BDRPBK1F075D BDRPBK1F090D BDRPBK1F110D BDRPBK1F020DV BDRPBK1F025DV BDRPBK1F032DV BDRPBK1F040DV BDRPBK1F050DV BDRPBK1F063DV BDRPBK1F075DV BDRPBK1F090DV BDRPBK1F110DV BDRPBK1P020S BDRPBK1P025S BDRPBK1P032S BDRPBK1P040S BDRPBK1P050S BDRPBK1P063S BDRPBK1P075S BDRPBK1P090S BDRPBK1P110S BDRPBK1P020SV BDRPBK1P025SV BDRPBK1P032SV BDRPBK1P040SV BDRPBK1P050SV BDRPBK1P063SV BDRPBK1P075SV BDRPBK1P090SV BDRPBK1P110SV BDRPBK1P020D BDRPBK1P025D BDRPBK1P032D BDRPBK1P040D BDRPBK1P050D BDRPBK1P063D BDRPBK1P075D BDRPBK1P090D BDRPBK1P110D BDRPBK1P020DV BDRPBK1P025DV BDRPBK1P032DV BDRPBK1P040DV BDRPBK1P050DV BDRPBK1P063DV BDRPBK1P075DV BDRPBK1P090DV BDRPBK1P110DV BDRPBK1D BDRPBK1P PBK1 PBK1P BARPBK1 BERPBK1 BNRPBK1 BSRPBK1 BJRPBK1
Applications:

BIM

BIM PVC-U Pneumatic BK1 Ball Valve Spring Return, Solvent Welded Metric
BIM PVC-U Pneumatic BK1 Ball Valve Spring Return, Solvent Welded BS
BIM PVC-U Pneumatic BK1 Ball Valve Spring Return, BSPP Threaded
BIM PVC-U Pneumatic BK1 Ball Valve Spring Return, HDPE Spigots
BIM PVC-U Pneumatic BK1 Ball Valve Double Acting, Solvent Welded Metric
BIM PVC-U Pneumatic BK1 Ball Valve Double Acting, Solvent Welded BS
BIM PVC-U Pneumatic BK1 Ball Valve Double Acting, BSPP Threaded
BIM PVC-U Pneumatic BK1 Ball Valve Double Acting, HDPE Spigots

PRODUCT CODES: BDRPBK1016S BDRPBK1020S BDRPBK1025S BDRPBK1032S BDRPBK1040S BDRPBK1050S BDRPBK1063S BDRPBK1075S BDRPBK1090S BDRPBK1110S BDRPBK1016SV BDRPBK1020SV BDRPBK1025SV BDRPBK1032SV BDRPBK1040SV BDRPBK1050SV BDRPBK1063SV BDRPBK1075SV BDRPBK1090SV BDRPBK1110SV BDRPBK1016D BDRPBK1020D BDRPBK1025D BDRPBK1032D BDRPBK1040D BDRPBK1050D BDRPBK1063D BDRPBK1075D BDRPBK1090D BDRPBK1110D BDRPBK1016DV BDRPBK1020DV BDRPBK1025DV BDRPBK1032DV BDRPBK1040DV BDRPBK1050DV BDRPBK1063DV BDRPBK1075DV BDRPBK1090DV BDRPBK1110DV BERPBK1016S BERPBK1020S BERPBK1025S BERPBK1032S BERPBK1040S BERPBK1050S BERPBK1063S BERPBK1075S BERPBK1090S BERPBK1110S BERPBK1016SV BERPBK1020SV BERPBK1025SV BERPBK1032SV BERPBK1040SV BERPBK1050SV BERPBK1063SV BERPBK1075SV BERPBK1090SV BERPBK1110SV BERPBK1016D BERPBK1020D BERPBK1025D BERPBK1032D BERPBK1040D BERPBK1050D BERPBK1063D BERPBK1075D BERPBK1090D BERPBK1110D BERPBK1016DV BERPBK1020DV BERPBK1025DV BERPBK1032DV BERPBK1040DV BERPBK1050DV BERPBK1063DV BERPBK1075DV BERPBK1090DV BERPBK1110DV BARPBK1016S BARPBK1020S BARPBK1025S BARPBK1032S BARPBK1040S BARPBK1050S BARPBK1063S BARPBK1075S BARPBK1090S BARPBK1110S BARPBK1016SV BARPBK1020SV BARPBK1025SV BARPBK1032SV BARPBK1040SV BARPBK1050SV BARPBK1063SV BARPBK1075SV BARPBK1090SV BARPBK1110SV BARPBK1016D BARPBK1020D BARPBK1025D BARPBK1032D BARPBK1040D BARPBK1050D BARPBK1063D BARPBK1075D BARPBK1090D BARPBK1110D BARPBK1016DV BARPBK1020DV BARPBK1025DV BARPBK1032DV BARPBK1040DV BARPBK1050DV BARPBK1063DV BARPBK1075DV BARPBK1090DV BARPBK1110DV BDRPBK1F020S BDRPBK1F025S BDRPBK1F032S BDRPBK1F040S BDRPBK1F050S BDRPBK1F063S BDRPBK1F075S BDRPBK1F090S BDRPBK1F110S BDRPBK1F020SV BDRPBK1F025SV BDRPBK1F032SV BDRPBK1F040SV BDRPBK1F050SV BDRPBK1F063SV BDRPBK1F075SV BDRPBK1F090SV BDRPBK1F110SV BDRPBK1F020D BDRPBK1F025D BDRPBK1F032D BDRPBK1F040D BDRPBK1F050D BDRPBK1F063D BDRPBK1F075D BDRPBK1F090D BDRPBK1F110D BDRPBK1F020DV BDRPBK1F025DV BDRPBK1F032DV BDRPBK1F040DV BDRPBK1F050DV BDRPBK1F063DV BDRPBK1F075DV BDRPBK1F090DV BDRPBK1F110DV BDRPBK1P020S BDRPBK1P025S BDRPBK1P032S BDRPBK1P040S BDRPBK1P050S BDRPBK1P063S BDRPBK1P075S BDRPBK1P090S BDRPBK1P110S BDRPBK1P020SV BDRPBK1P025SV BDRPBK1P032SV BDRPBK1P040SV BDRPBK1P050SV BDRPBK1P063SV BDRPBK1P075SV BDRPBK1P090SV BDRPBK1P110SV BDRPBK1P020D BDRPBK1P025D BDRPBK1P032D BDRPBK1P040D BDRPBK1P050D BDRPBK1P063D BDRPBK1P075D BDRPBK1P090D BDRPBK1P110D BDRPBK1P020DV BDRPBK1P025DV BDRPBK1P032DV BDRPBK1P040DV BDRPBK1P050DV BDRPBK1P063DV BDRPBK1P075DV BDRPBK1P090DV BDRPBK1P110DV BDRPBK1D BDRPBK1P PBK1 PBK1P BARPBK1 BERPBK1 BNRPBK1 BSRPBK1 BJRPBK1
Applications:
